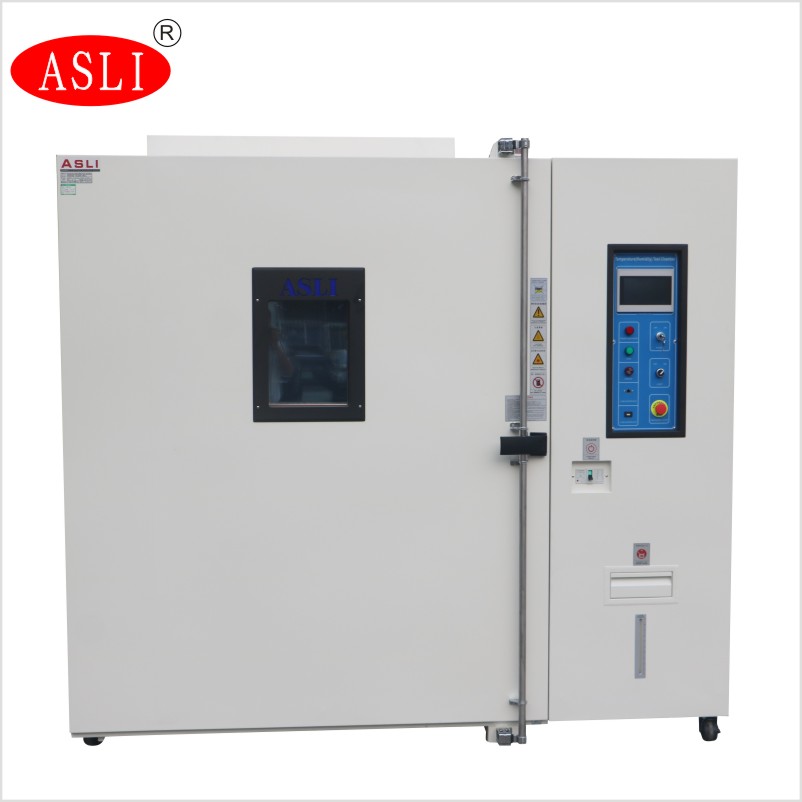

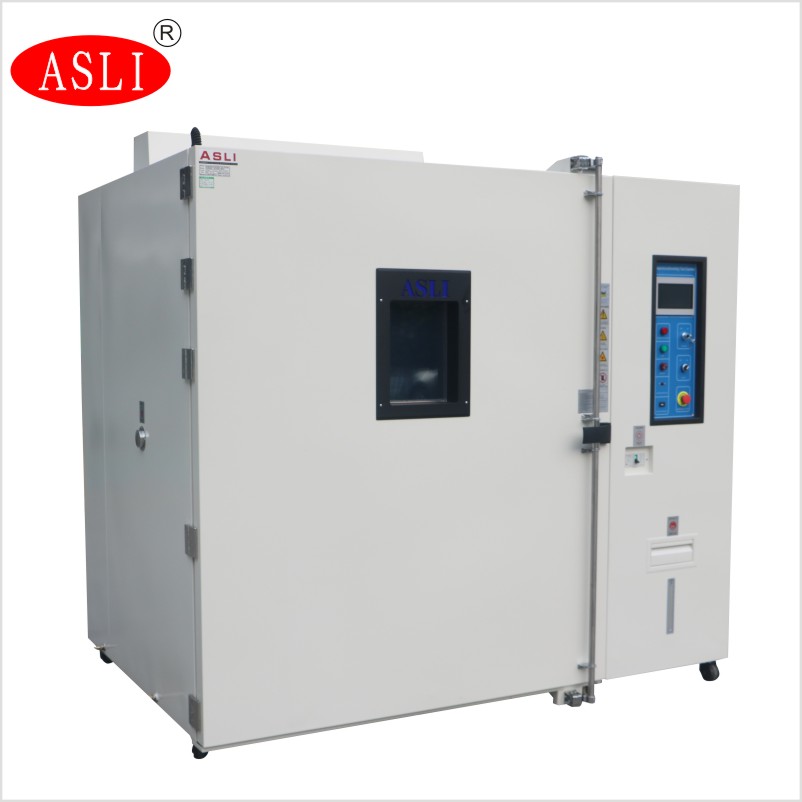

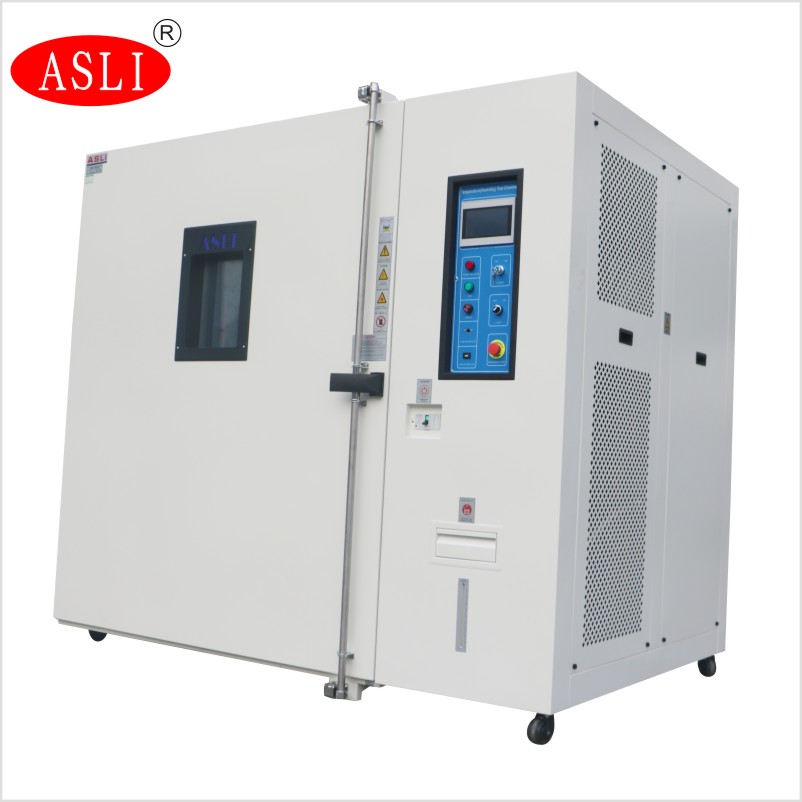

Thermal Cycling & Temperature Shock Testing Two-in-One Chamber (TH-150 / TH-225 / TH-408)

Description

The Thermal Cycling Temperature Shock Two-in-One Chamber is designed to perform both rapid temperature cycling tests and temperature shock tests in a single system. This integrated solution allows laboratories and manufacturers to conduct multiple reliability tests using one piece of equipment, improving efficiency and reducing equipment costs. The chamber is widely used in semiconductor, electronics, automotive components, and reliability testing laboratories. Models available include TH-150, TH-225, and TH-408, supporting different chamber volumes for various testing requirements.

SHARE AS

REQUEST A QUOTE

FEATURES

Dual Testing Function

One chamber supports both thermal cycling testing and temperature shock testing, reducing the need for two separate machines.

Compliance with Industry Standards

The system can meet reliability testing standards such as:

IEC 60749-4-2002
AEC-Q100
JEDEC JESD22-A104

These standards are widely used in semiconductor and integrated circuit testing.

Fast Temperature Transition

Designed for rapid temperature change testing required for semiconductor reliability evaluation.

Humidity Control Under High Temperature Conditions

The chamber supports humidity control under specific high-temperature conditions, enabling advanced environmental simulation.

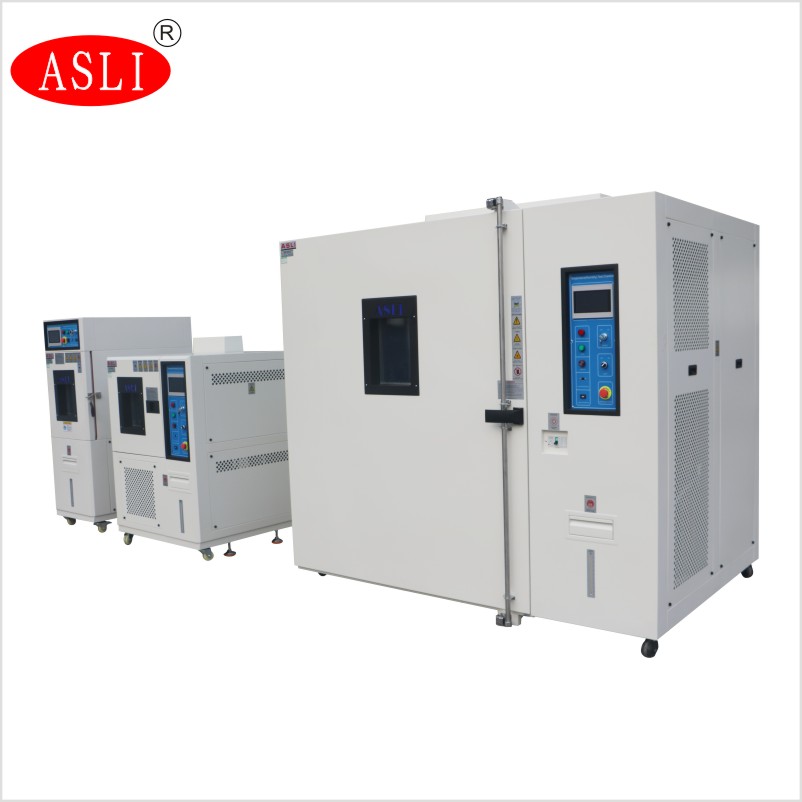

Multiple Chamber Sizes

Available models include:

TH-150
TH-225
TH-408

Different volumes are available to meet various testing requirements.

TECHNICAL PARAMETERS

Model	HL-80	HL-150	HL-225	HL-408	HL-800	HL-1000
Internal Dimension WxHxD (mm)	400x500x400	500x600x500	600x750x500	600x850x800	1000x1000x800	1000x1000x1000
Internal Dimension WxHxD (mm)	950x1650x950	1050x1750x1050	1200x1900x1150	1200x1950x1350	1600x2000x1450	1600x2100x1450
Temperature Range	Low Temperature(A:25℃ B:0℃ C:-20℃ D:-40℃ E:-60℃ F:-70℃) High Temperature 150℃
Humidity Range	20%~98%R.H. (humidity control is optional)
Indication relolution/Distribution uniformity of temperature and humidity	0.1℃; 0.1% R.H/±2.0℃; ±3.0% R.H.(humidity control is optional)
Control Accuracy of Temperature and Humidity	±0.5℃; ±2.5% R.H.(humidity control is optional)
Temperature Rising/Falling Velocity	Temperature rising approx. 0.1~3.0℃/min ; temperature falling approx. 0.1~1.5℃/min; ( faster temperature change rate is optional)
Inner and Outer Material	Interior material is SUS 304# stainless steel, exterior is stainless steel or SEE cold-rolled steel with paint coated.
Insulation Material	Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials
Cooling System	Wind cooling or water cooling, (single segment compressor-40℃, double segment compressor -70℃)
Protection Devices	Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection
Optional Accessories	Inner door with operation hole , Recorder, Water Purifier, Dehumidifier
Compressor	French Tecumseh Brand, Germany Bizer Brand
Power	AC220V 1∮ 3 lines, 50/60HZ , AC380V 3∮ 5 lines , 50/60HZ
Approx. Weight (Kg)	150	180	250	320	400	450
