Electrodynamic Vibration Shaker Series | ASLI
Custom Vibration Shaker Manufacturer

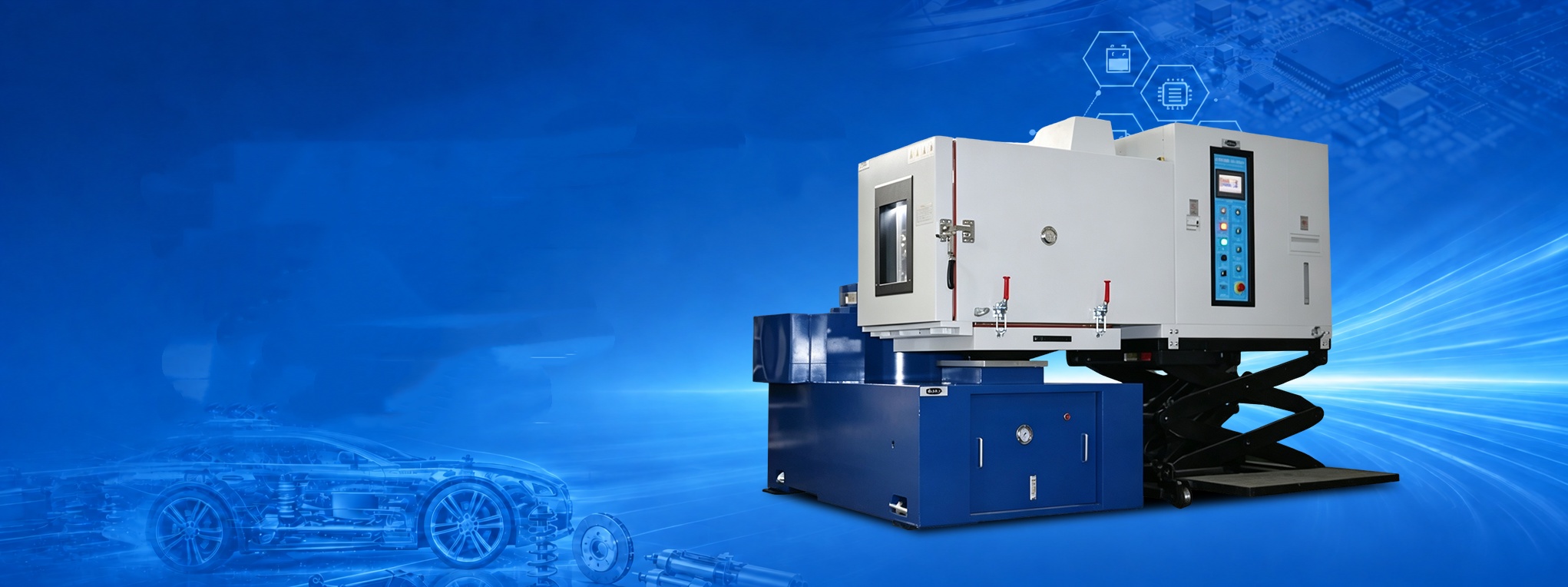

Precision Vibration Test System
Sine, random, shock & mixed-mode testing.
Factory-direct customization for MIL-STD-810, IEC 60068, ISTA.
0Hz
3–3500 Hz (1Hz optional)
Frequency Range
0mm
25–85 mm
Max Displacement (p-p)
0m/s² / 98g
980 m/s² (98g)
Max Acceleration
Product Series
Electrodynamic Shaker Systems
Filter by series to find the right model.
Shakers
Shakers Series Specifications
Selection Guide
How to Choose the Right Shaker?
Four steps to match your test requirements.
01
Determine Frequency
Sine, random, shock – specify range (3–3500 Hz).
02
Evaluate Acceleration & Displacement
Based on test standards, determine max g and mm.
03
Calculate Required Force
Force = (specimen + fixture + armature) × acceleration.
04
Match Model & Configuration
Confirm controller, amplifier, and fixtures.
Test Challenges
Common Pain Points & Solutions
Waveform Distortion & Resonance
Resonance near natural frequencies causes distortion and unreliable data.
- ✓DSP Closed-loop Control – real-time correction, THD <1%
- ✓Resonance Suppression – automatic identification and optimization
- ✓High-rigidity Armature – minimizes mechanical resonance
Overheating & Wear During Continuous Operation
High-intensity testing causes overheating and guide wear, leading to downtime.
- ✓Efficient Air/Water Cooling – ensures 24/7 reliability
- ✓Self-diagnostics – monitors temperature, current, vibration
- ✓Aerospace-grade Bearings – low friction, extended maintenance cycles
Complex Standards Switching
MIL-STD-810, IEC, ISTA, GJB – manual setup is time-consuming and error-prone.
- ✓Preloaded Standard Library – 100+ templates, one-click recall
- ✓Custom Sequence Builder – drag-and-drop test profiles
- ✓Audit-ready Reporting – automatic CNAS/ISO17025 reports
