Temperature Humidity Vibration Combined Test Chamber
AGREE Chamber — integrated temperature, humidity and vibration testing in a single system. Designed to reproduce real-world service conditions for automotive, aerospace, electronics and precision components, and compliant with IEC, MIL-STD-810 and ISO 16750-3 standards.
01 Key Features
- Combined structure of test chamber and refrigeration system — compact, integrated design with independent console
- Original refrigeration compressor unit and main accessories use internationally famous brands
- LCD color touchscreen controller with automatic temperature and humidity program control
- RS-232 communication for external control and data integration
- Heat and air seal system — allows simultaneous mechanical vibration with stable thermal performance
- Vibration test bench selected to match customer test conditions (see shaker options below)
02 Test Standards Covered
- IEC 68-2-1 (GB 2423.1-2008) Cold
- IEC 68-2-2 (GB 2423.2-2008) Dry Heat
- IEC 68-2-3 (GB 2423.3-2006) Damp Heat Steady State
- IEC 68-2-30 (GB 2423.4-2008) Damp Heat Cyclic
- IEC 68-2-14 (GB 2423.22-2008) Change of Temperature
- IEC 60068-2-6 Vibration (Sinusoidal)
- MIL-STD-810G / 810F Environmental Test Methods
- ISO 16750-3 Road Vehicles — Mechanical Loads
03 Main Chamber Specifications
Click any row to highlight it. Select the text to copy the value you need.
| Model | THV-408 (A~F) | THV-1000 (A~F) | THV-1500 (A~F) |
|---|---|---|---|
| Internal Dimension W×H×D (mm) | 600 × 850 × 800 | 1000 × 1000 × 1000 | 1500 × 1500 × 1500 |
| External Dimension W×H×D (mm) | 850 × 1950 × 2100 | 1300 × 2200 × 2400 | 1800 × 2400 × 3000 |
| Temperature Range | Low Temperature (A: 25℃ B: 0℃ C: -20℃ D: -40℃ E: -60℃ F: -70℃) High Temperature: 100℃ (150℃ optional) |
||
| Humidity Range | 20% ~ 98% R.H. (10% ~ 98% R.H. / 5% ~ 98% R.H. is a special optional condition, need dehumidifier) | ||
| Indication Resolution / Distribution Uniformity | 0.1℃; 0.1% R.H. / ±2.0℃; ±3.0% R.H. | ||
| Control Accuracy of Temperature and Humidity | ±0.5℃; ±2.5% R.H. | ||
| Temperature Rising / Falling Velocity | Rising approx. 0.1 ~ 3.0℃/min; falling approx. 0.1 ~ 1.5℃/min (falling velocity min. 1.5℃/min is optional) | ||
| Internal & External Material | Inner box: SUS 304# stainless steel. Outer box: stainless steel or SEE cold-rolled steel with paint coating. | ||
| Insulation Material | High-temperature resistant, high-density formate chlorine / ethyl acetate foam insulation materials | ||
| Cooling System | Wind cooling or water cooling. Single-segment compressor for -40℃, double-segment compressor for -70℃. | ||
| Protection Devices | Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection. | ||
| Optional Accessories | Inner door with operation hole, Recorder, Water Purifier, Dehumidifier | ||
| Vibration Test Equipment | A proper vibration test bench is selected according to the customer's test condition. See shaker specifications below for reference. | ||
| Power | AC 380V, 3-phase 5 lines, 50/60 Hz | ||
04 Compatible Vibration Shakers
Electrodynamic vibration testers available for AGREE integration. Select the model that matches your required force, frequency and load.
Click any row to highlight it. Select the text to copy the value you need.
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s²) | Rated Speed (m/s) | Rated Displacement (p-p) mm | Max. Loading (Kg) | Moving Coil (Kg) | Dimension of Moving Coil (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ES-1 | 1000 | 1000 | 3 – 3500 | 400 | 1.2 | 25 | 70 | 2.5 | Φ150 |
| ES-2 | 2000 | 2000 | 3 – 3500 | 800 | 1.6 | 25 | 70 | 2.5 | Φ150 |
| ES-2a | 2000 | 2000 | 3 – 3500 | 300 | 1.6 | 40 | 70 | 8 | Φ230 |
| ES-3 | 3000 | 3000 | 3 – 3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3 – 3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3 – 3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3 – 3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3 – 3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3 – 3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
05 Vibration Expanders
Vertical Expanders
Click any row to highlight it. Select the text to copy the value you need.
| Model | Weight (kg) | Max. Frequency (Hz) | Bench Size |
|---|---|---|---|
| VT300 | 10 | 2000 | Φ300 |
| VT400 | 16 | 2000 | Φ400 |
| VT500 | 25 | 1500 | Φ500 |
| VT600 | 35 | 1000 | Φ600 |
| VT0303 | 15 | 2000 | 300 × 300 |
| VT0404 | 22 | 1500 | 400 × 400 |
| VT0505 | 30 | 500 | 500 × 500 |
| VT0606 | 58 | 350 | 600 × 600 |
| VT0808 | 140 | 350 | 800 × 800 |
| VT1010 | 180 | 350 | 1000 × 1000 |
| VT1212 | 250 | 350 | 1200 × 1200 |
| VT1212 (Round bench) | 220 | 350 | Φ1200 |
Horizontal Expanders
Click any row to highlight it. Select the text to copy the value you need.
| Model | Bench Size (mm) | Frequency Range (Hz) | Weight of Moving Parts (kg) |
|---|---|---|---|
| LT0303 | 300 × 300 × 22 | 5 – 1000 | 6.6 |
| LT0303 | 300 × 300 × 26 | 5 – 1500 | 7.8 |
| LT0303 | 300 × 300 × 30 | 5 – 2000 | 9.0 |
| LT0404 | 400 × 400 × 22 | 5 – 1000 | 11.2 |
| LT0404 | 400 × 400 × 26 | 5 – 1400 | 13.2 |
| LT0404 | 400 × 400 × 30 | 5 – 2000 | 16.0 |
| LT0505 | 500 × 500 × 25 | 5 – 1000 | 19.3 |
| LT0505 | 500 × 500 × 30 | 5 – 1500 | 23.1 |
| LT0505 | 500 × 500 × 35 | 5 – 2000 | 27.0 |
| LT0606 | 600 × 600 × 25 | 5 – 1000 | 27.5 |
| LT0606 | 600 × 600 × 30 | 5 – 1200 | 33.0 |
| LT0606 | 600 × 600 × 40 | 5 – 2000 | 45 |
| LT0707 | 700 × 700 × 25 | 5 – 800 | 36.8 |
| LT0707 | 700 × 700 × 30 | 5 – 1000 | 44.2 |
| LT0707 | 700 × 700 × 35 | 5 – 1500 | 52 |
06 Product Details

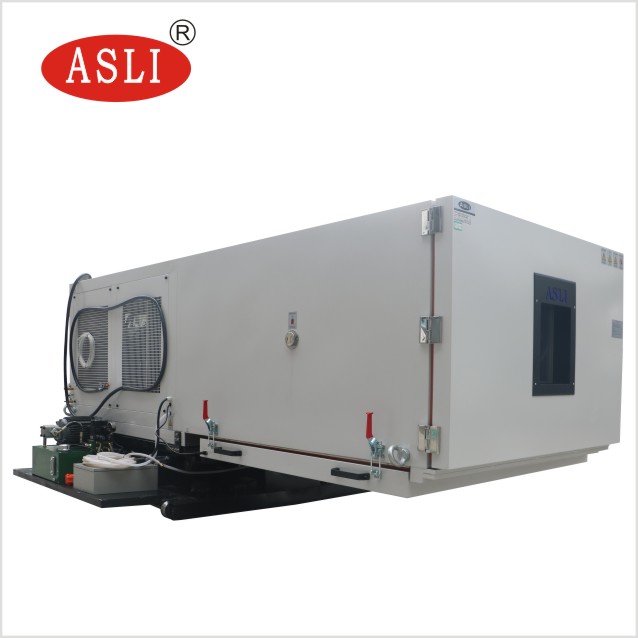

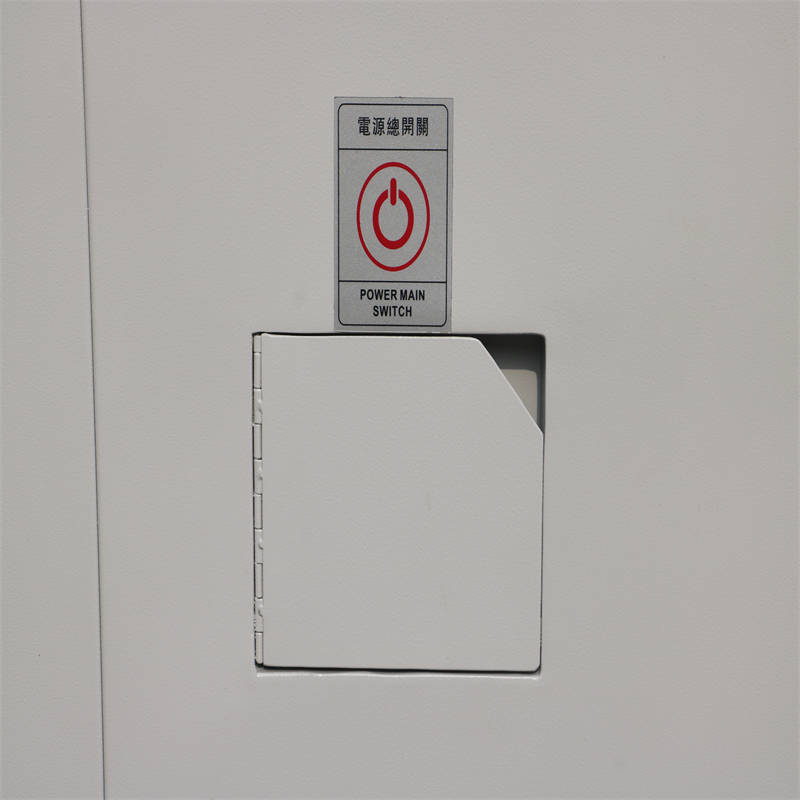

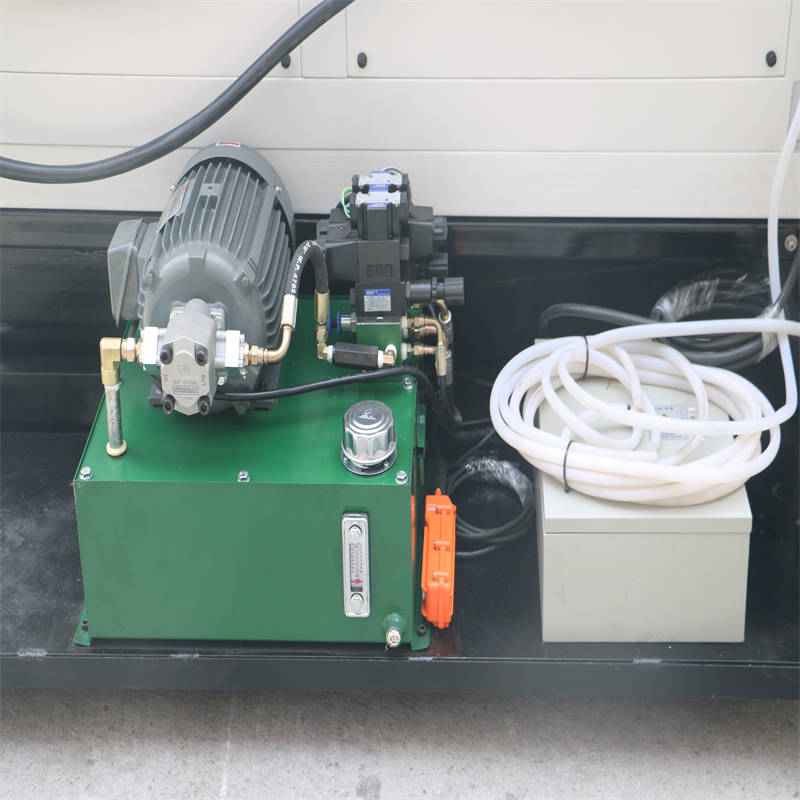

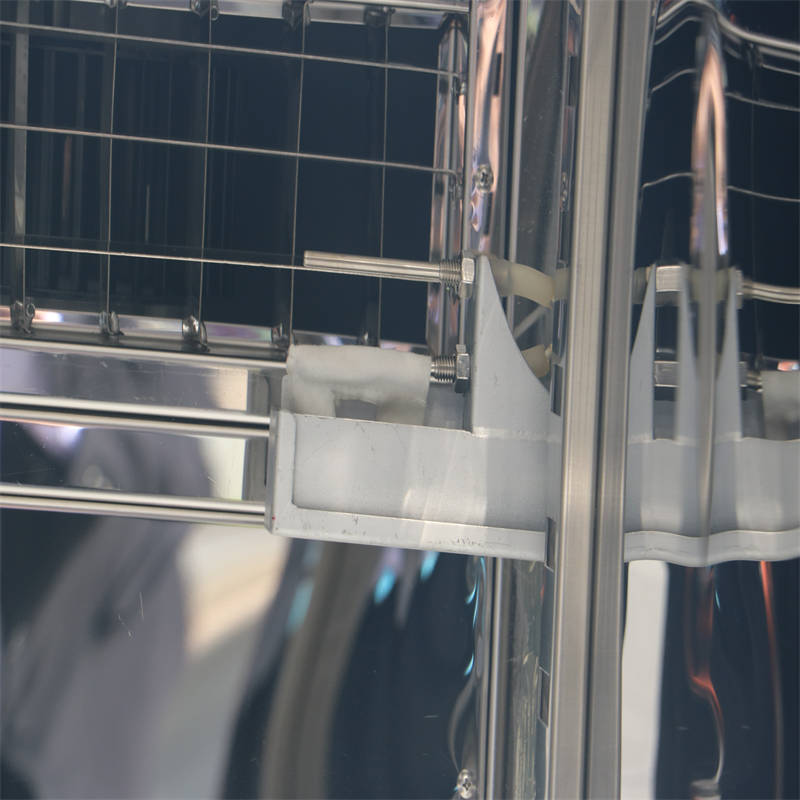

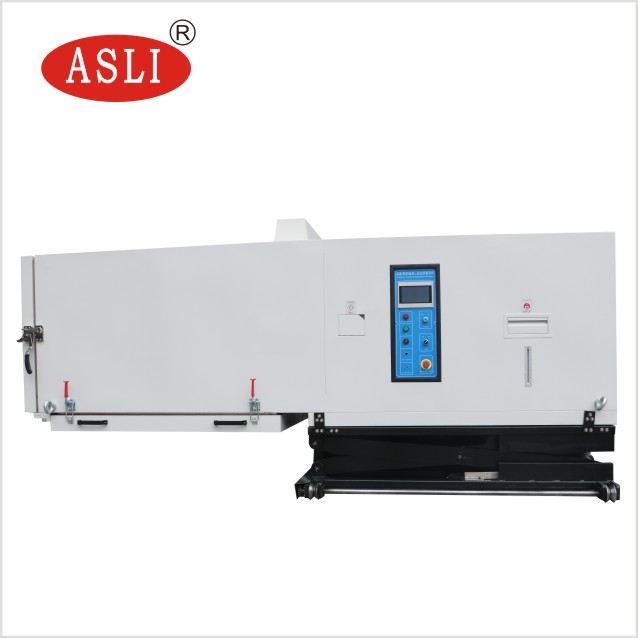

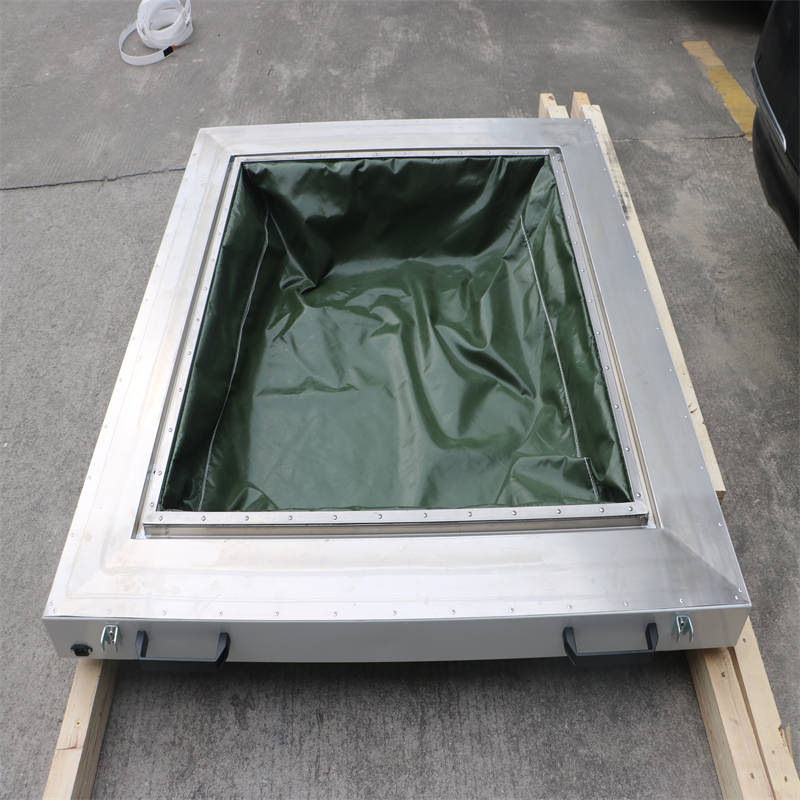

Close-up views of the AGREE chamber system — exterior, control console, shaker interface, interior and installation.
07 Customization
Every AGREE chamber is configured around your test profile. Chamber size, temperature and humidity range, vibration shaker model, fixture interface and control system can all be tailored.
08 About ASLI TEST
- 28 years of experience in environmental and mechanical vibration test equipment manufacturing
- CE certified for temperature humidity vibration comprehensive test chambers
- Full experience in loading large numbers of containers at Chinese sea ports
- Fast shipment by reputed shipping lines, with best after-shipment service
- Equipment exported to more than 100 countries
09 Frequently Asked Questions
What is an AGREE Chamber?
An AGREE Chamber is a temperature humidity vibration combined test chamber. It integrates thermal cycling, humidity control and electrodynamic vibration in a single system, allowing simultaneous three-axis environmental stress testing. Also known as a three-combined environmental test chamber.
What is the difference between an AGREE Chamber and a standard environmental chamber?
A standard temperature humidity chamber only controls temperature and humidity. An AGREE Chamber adds a vibration shaker interface and a heat and air seal system, so vibration can be applied while the chamber maintains stable temperature and humidity. This reproduces real service conditions more accurately.
Which vibration shaker models are compatible?
ASLI offers ES series electrodynamic shakers from ES-1 (1000 N sine force) to ES-20 (20000 N sine force), along with VT vertical expanders and LT horizontal expanders for different bench sizes and frequency ranges.
What temperature and humidity range does the AGREE Chamber support?
Low temperature options: A: 25℃, B: 0℃, C: -20℃, D: -40℃, E: -60℃, F: -70℃. High temperature: 100℃ standard, 150℃ optional. Humidity range: 20% to 98% RH, with 10% / 5% RH optional with a dehumidifier.
What test standards does the AGREE Chamber comply with?
IEC 68-2-1 / 2-2 / 2-3 / 2-30 / 2-14, IEC 60068-2-6, MIL-STD-810G / 810F, and ISO 16750-3.
What is the lead time and MOQ?
Made-to-order. Typical lead time is 45–90 working days after deposit, depending on chamber size, shaker model and configuration. MOQ is 1 unit. Factory direct pricing available.
Share your test profile — temperature range, vibration level and sample weight — and we'll configure the right AGREE chamber for you.
